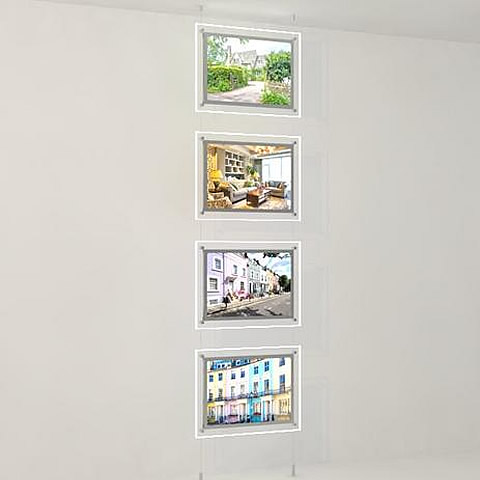

A3 Bevelled Edge LED Light Pocket Kit - Four High on Cables

​About the Product

• Bevelled Edge LED Light Pocket panels are manufactured with a wider border than our Compact range to create a more airy feel to your display

• Manufactured in the UK with a 12 month warranty, these durable and stylish LED Light Pockets are designed to last

• Double sided display allowing you to show graphics on both sides of the LED panel

• Kit includes all components needed to create your window display, including; 2 x 4m steel cables with ceiling to floor cable connectors, LED light panel, transformer and power cables

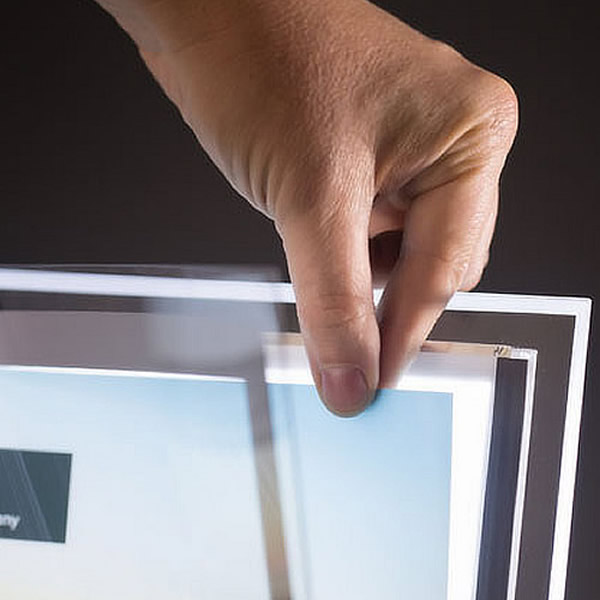

• Graphics can be easily changed by simply slotting them into the front and rear magnetic pockets - no need for tools

• Supplied as standard with 15mm silver border to perfectly frame your poster contents

• ​Bevelled edge design results in a subtle ice white glow with no dark lines

• ​For best results print your graphics on Lite Film (sold here in sizes A4 & A3) Lite Film for Laser & Ink Jet Printers (50 Sheets)  - high quality paper stock may also produce satisfactory results

• Powered by 12 volt transformer that plugs directly into the mains

• Panels should be installed far enough away from the glazing to enable graphics to be easily changed (minimum 300mm)

• Low energy "maintenance free" LED illumination with a minimum life expectancy of up to 75,000 hours

Portrait Panel Size: 382 mm x 505 mm
Portrait Cable Centres: 326 mm
Landscape Panel Size: 505 mm x 382 mm
Landscape Cable Centres: 449 mm
Silver Border: 15 mm (10mm of graphic on each edge will sit behind the border)
Weight: 25 kg
​Recommended Distance From Glass: 300 mm (Minimum)

Our LED Light Pocket Display Kits are supplied as standard with Ceiling to Floor cable or rod connectors at no additional cost. Alternative connector kits (see below) are available at additional cost. Contact us for prices and advice on 024 76010261.

Ceiling to Floor Connector Kit (Standard)	Wall to Wall Connector Kit	Wall to Floor Connector Kit	Ceiling to Wall Connector Kit

Installation service

How close should the LED Panels be installed from the window?

• Panels should be installed far enough away from the glazing to enable graphics to be easily changed (minimum 300mm)

One of my LED Light Pockets keeps flickering on and off or will not come on at all, what do I do?

• If your LED Light Pocket flickers, it is normally a sign of a weak connection. Firstly, check that the two brass metal connection strips are under each grub screw on the bottom fittings.

• If not, adjust them accordingly and tighten the grub screw on the bottom fittings.

• If the LED Light Pocket will not come on check that it has been installed the correct way around. Look for the positive (+) and negative (-) stickers on the fittings, they should all be facing you.  The positive (+) sticker should always be on the right and negative (-) on the left.

• If only one LED Light Pocket is not working, it could be a technical fault with the panel. In this case contact us directly.

The whole column of my LED Light Pocket kit is flickering or will not turn on, what do I do?

• If a whole column of LED Light Panels flickers or will not turn on it is usually because of the transformer. The first thing to do is check that power is reaching the transformer, this is easy to do. Simply see if the small red light on the transformer is on.

• If not, check that the fuse in the plug is in working order.

• If the light is on check that the transformer connections are securely fitted onto the cables. If the red light on the transformer does not come on after all the above checks, it is possible that it is faulty. In this case contact us directly.

Guidelines for Electricians

LED Light Pockets can be connected to 13-amp sockets or to an electrical spur.

Before installation, check the total amps required. Eg. A display that consists of 3 x A4 pockets and will be supplied with a power pack with a 2-amp loading allowance. Your window display may have 4 of these kits which means you will need to allow for 4 power packs, each with a 3-pin plug (supplied).

Installation to metal window frames

Please be aware that if you intend installing your LED Light Pocket kit into a metal window frame you will need to install isolators for your cables/rods both top and bottom. Contact us for more information.

Electrical supply requirements

Please note that when multiple displays are installed you will need to allow for up to 80 - 100 amp in-rush current for up to 100us. We therefore recommend that a C or D type anti surge breaker is used in the fuse board when groups of supplies are switched on manually or automatically by a timeclock.

It is the electrician's responsibility to ensure that suitable provision is provided when units are switched on.

We do not recommend connecting your LED Light Pocket display to the lighting circuit.
